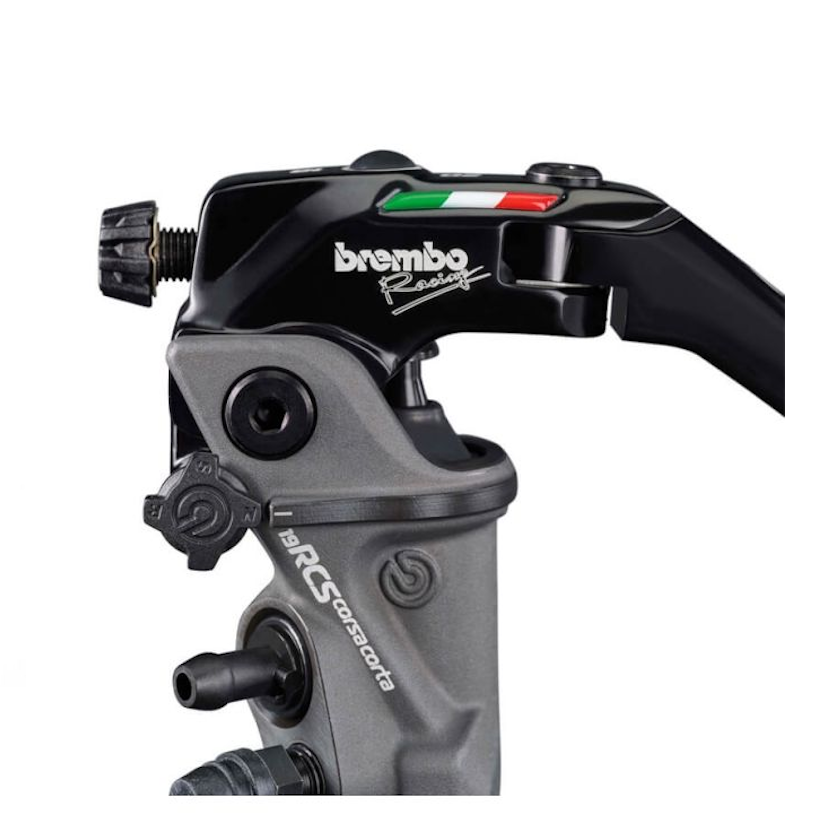

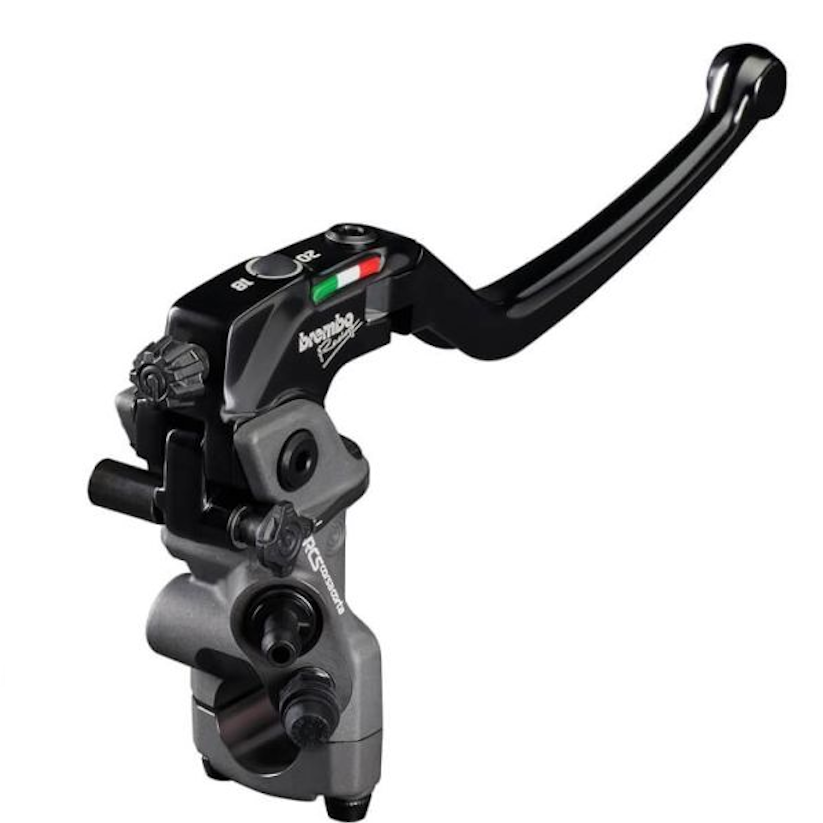

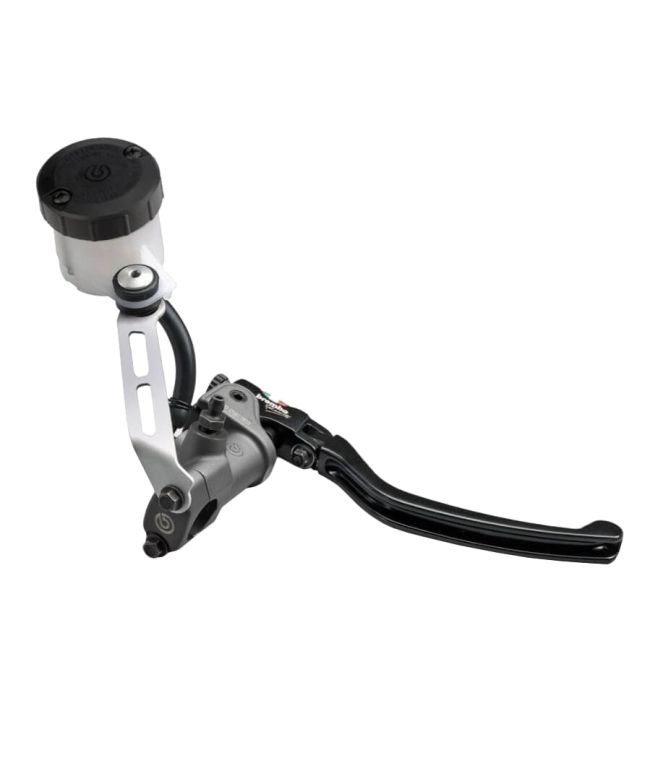

Brembo 19 RCS Corsa Corta Front Brake Master Cylinder

Brembo 19 RCS Corsa Corta front brake master cylinders have a 19mm piston and feature six different setting options, including bite point adjustment in addition to the patented RCS (Ratio Click System) introduced by Brembo over a decade ago on their 19 RCS master cylinder..

The RCS gives adjustment of the lever distance for even more feel and adjustability. Within seconds, the braking system can be adjusted between aggressive and reactive (20mm) or softer with more modulation (18mm), using only a screwdriver.

In addition to the RCS system, the Corsa Corta master cylinders have three different 'maps', N, S and R, giving the possibility of six different combinations. N (normal) gives a standard bite point position, to guarantee a more gradual initial braking phase, suitable for road riding or riding in poor conditions. S (sport) gives a more dynamic response, suitable for sportier riding. R (race) allows for the initial braking phase to be reduced as much as possible, giving a similar bite point feel to the master cylinders used in Moto GP. R mode is designed specifically for race and track day environments.

The lever assembly can be changed without disassembling the RCS system, allowing any settings to remain. The long folding lever is designed to give added crash resistance.
